Product type

DIN Cast iron gate valves

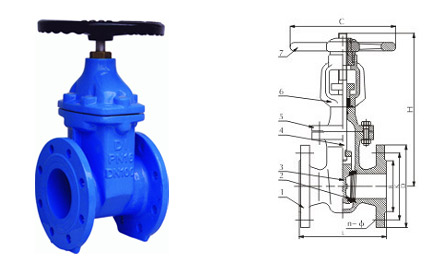

Components

1 Body Cast iron or ductile iron
2 Disc Ductile iron with NBR/EPDM
3 Bonnet Cast iron or Ductile iron
4 Stem Stainless steel
5 O-ring NBR
6 Nut Brass
7 Hand wheel Cast iron or Ductile iron

Application

1 Face to face is according to DIN3202-F4
2 flange drilled is according toDIN2532/ DIN2533

Test

Working Pressure PN10 PN16
Shell Pressure 15bars 24bars
Seat pressure 11bars 17.6bars

Dimensions(Unit:mm)

DN 50 65 80 100 125 150 200 250 300
L 150 170 180 190 200 210 230 250 270
H 255 320 335 350 450 480 600 660 750
D(PN10) 165 185 200 220 250 285 340 395 445
D(PN16) 165 185 200 220 250 285 340 405 460
K(PN10) 125 145 160 180 210 240 295 350 400
K(PN16) 125 145 160 180 210 240 295 355 400
g 102 122 138 158 188 212 268 320 378
