DIN Cast iron Globe valves

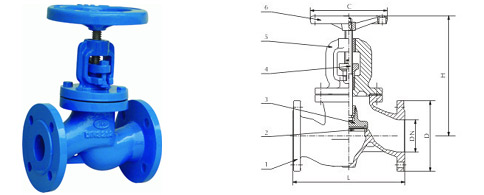

Components

1 Body Cast iron or ductile iron
2 Disc Cast iron or ductile iron
3 Seat Brass
4 Stem Carbon steel or stainless steel
5 Bonnet Cast iron or ductile iron
6 Hand wheel Cast iron or ductile iron

Application

1 Design according to DIN3202-F32
2 Flange end DIN2532/2533
3 Nominal Pressure PN10/PN16

Test

Working Pressure  PN10/PN16
Test Pressure  Shell 15bars/24bars
Seat 11bars/17.6bars

Dimensions(Unit:mm)

DN 40 50 65 80 100 125 150 200 250 300
L 200 230 290 310 350 400 480 600 730 850
H 95 100 115 135 145 160 180 270 320 350
PN10
D 150 165 185 200 220 250 285 340 395 445
n 4 4 4 `8 8 8 8 8 12 12
φ 18 18 18 18 18 18 23 23 23 23
G 110 125 145 160 180 210 240 295 350 400
K 88 102 122 138 158 188 212 268 320 370
PN16
D 150 165 185 200 220 250 285 340 405 460
n 4 4 4 8 8 8 8 12 12 12
φ 18 18 18 18 18 18 22 22 26 26
G 110 125 145 160 180 210 240 295 355 770
K 88 102 122 138 158 188 212 268 320 378
