Product type

DIN Cast iron Check valves

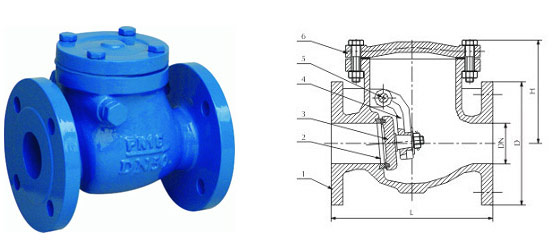

Components

1 Body Cast iron or ductile iron
2 Seat Brass
3 Disc Seat Ring Rubber
4 Disc Cast iron or ductile iron
5 Stem Carbon steel or stainless steel
6 Cover Cast iron or ductile iron

Application

1 Face to face DIN3202-F6 PN10/16
2 Flange end DIN2532/2533
3 Nominal Pressure PN10/16

Test

Working Pressure   PN10/PN16
Test Pressure Shell 15bars/24bars
  Seat 11bars/17.6bars

Dimensions(Unit:mm)

DN 40 50 65 80 100 125 150 200 250 300
L 180 200 240 260 300 350 400 500 600 700
H 120 125 130 160 185 195 205 285 320 340
PN10
D 150 165 185 200 220 250 285 340 395 445
k 110 125 145 160 180 210 240 295 350 400
g 88 102 122 138 158 188 212 268 320 370
PN16
D 150 165 185 200 220 250 285 340 405 460
k 110 125 145 160 180 210 240 295 355 410
g 88 102 122 138 158 188 212 268 320 378
