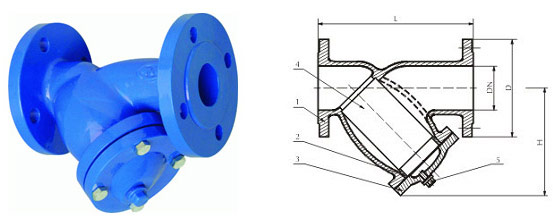

DIN Cast iron Y strainer

Components

1 Body Cast iron or Ductile iron
2 Plug Cast iron or Ductile iron
3 Cover Cast iron or Ductile iron
4 Screen Stainless steel
5 Bolt Carbon steel

Application

1 Design according to DIN3202 F1
2 Flange end DIN2532/2533 PN10/PN16
3 Nominal Pressure PN10/PN16

Test

Working Pressure   PN10/PN16
Test Pressure Shell 15bars/24bars
  Seat 11bars/17.6bars

Dimensions(Unit:mm )

DN 40 50 65 80 100 125 150 200 250 300
L 200 230 290 310 350 400 480 600 730 850
H 105 125 150 175 195 235 275 350 420 490
PN10
D 150 165 185 200 220 250 285 340 395 445
k 110 125 145 160 180 210 240 295 350 400
g 88 102 122 138 158 188 212 268 320 370
PN16
D 150 165 185 200 220 250 285 340 405 460
k 110 125 145 160 180 210 240 295 355 410
g 88 102 122 138 158 188 212 268 320 378
